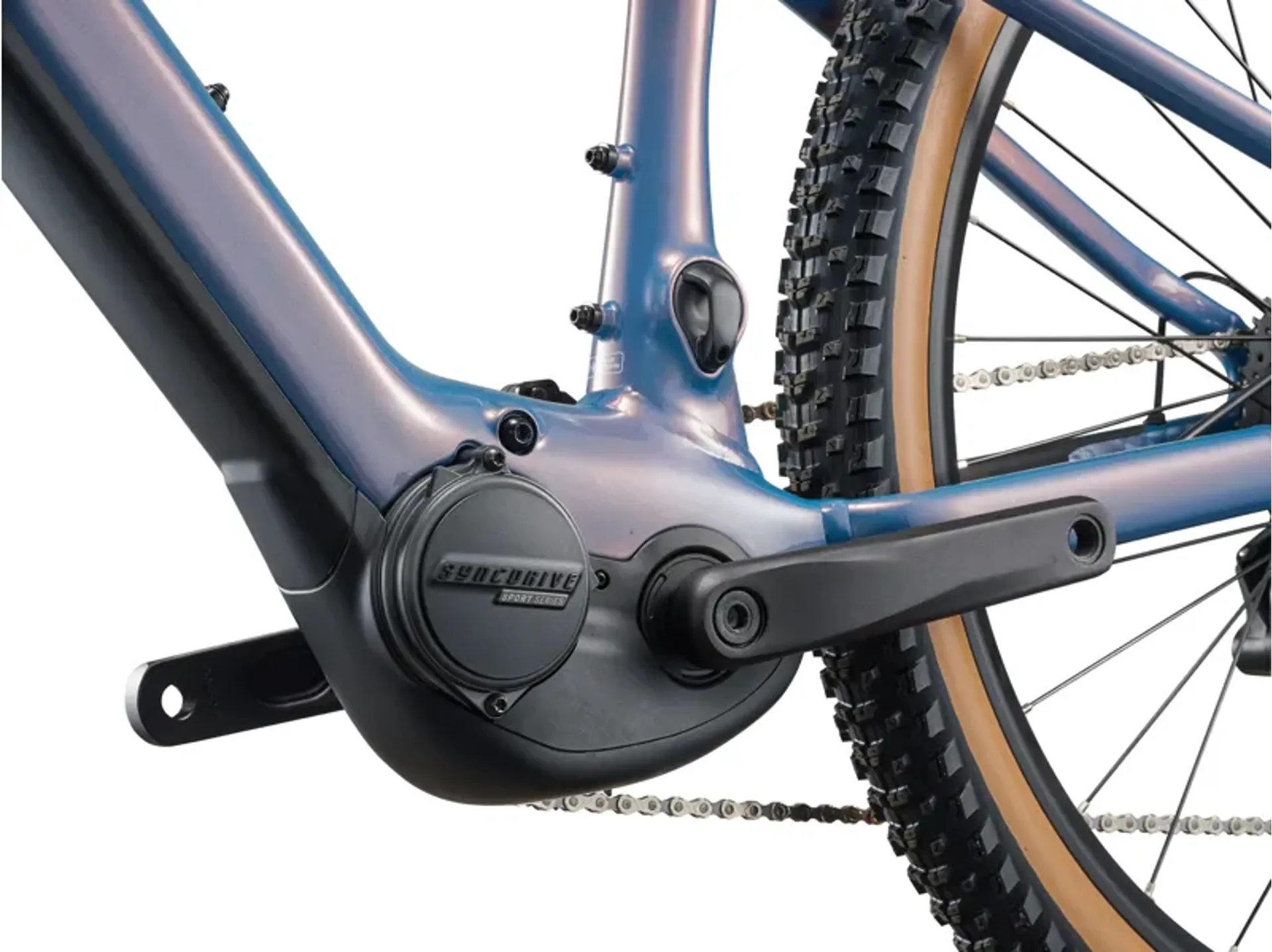

Motor
Giant SyncDrive Sport 2, 75Nm, PedalPlus 6-sensor technology
-

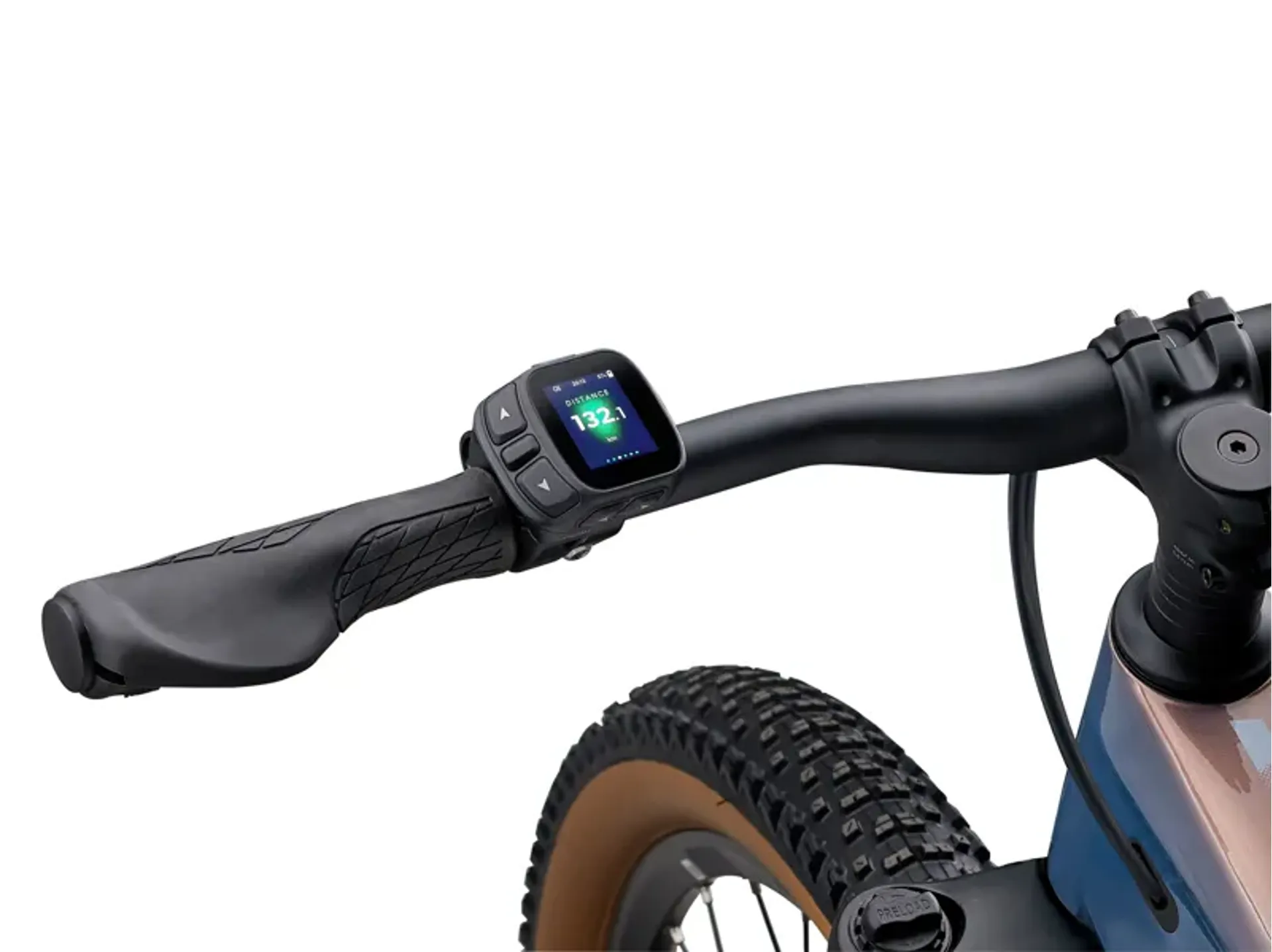

Controller
Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels, USB-C (10W)
-
Battery
Giant EnergyPak Smart 430Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
-
Charger
Giant EnergyPak smart charger 4A
-
Connectivity
Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
-
Sizes
XS, S, M, L (XS-S: 27.5, M-L: 29er)
-

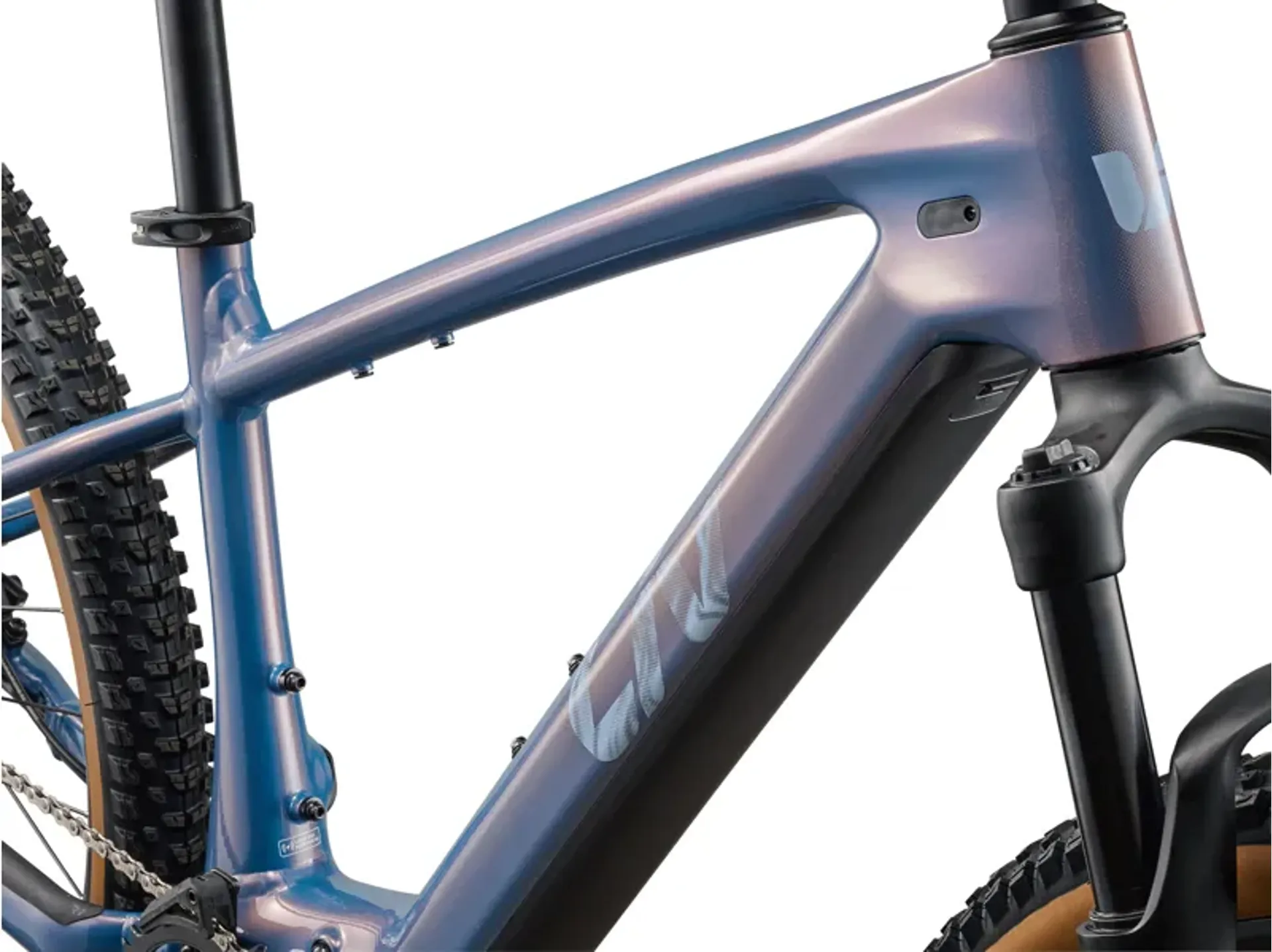

Frame
ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KSA40 kickstand mount
-

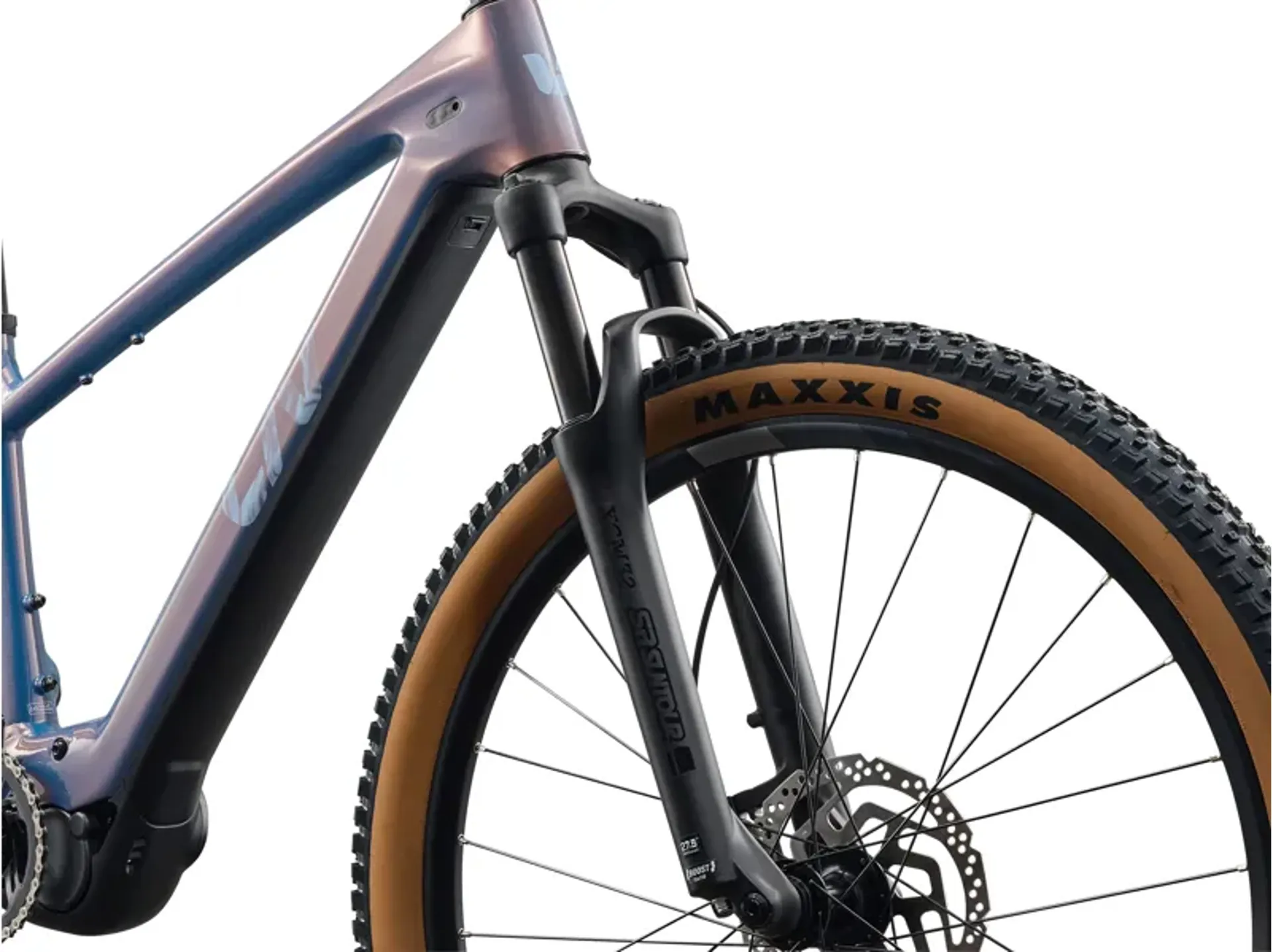

Fork
SR Suntour XCM ATB DS coil 29" 100mm travel 15x110mm AH axle
-

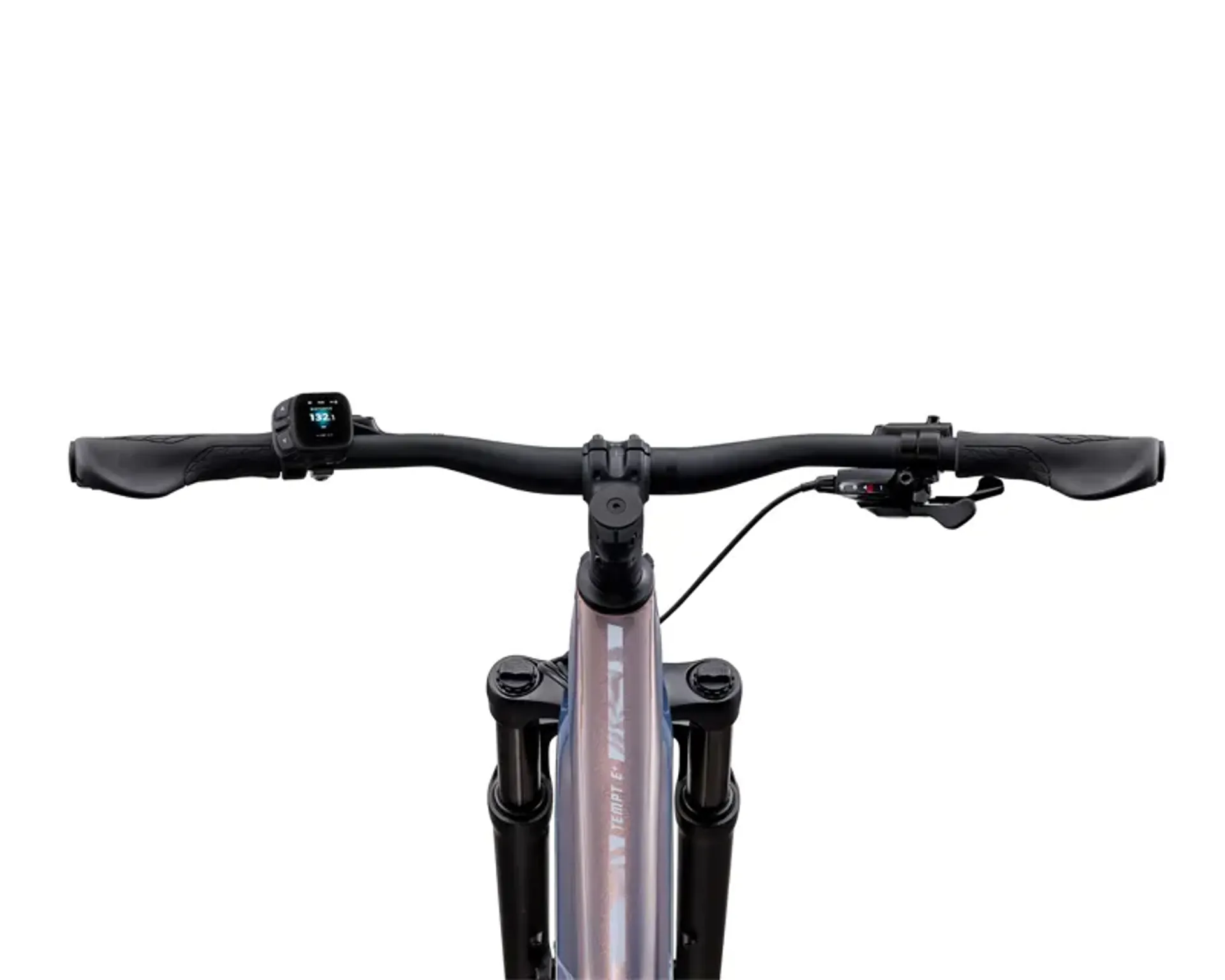

Handlebar
Giant Connect TR Riser 31.8x690~750mm
-
Grips
Giant Sole-O Grip
-
Stem
Giant Contact
-
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
-

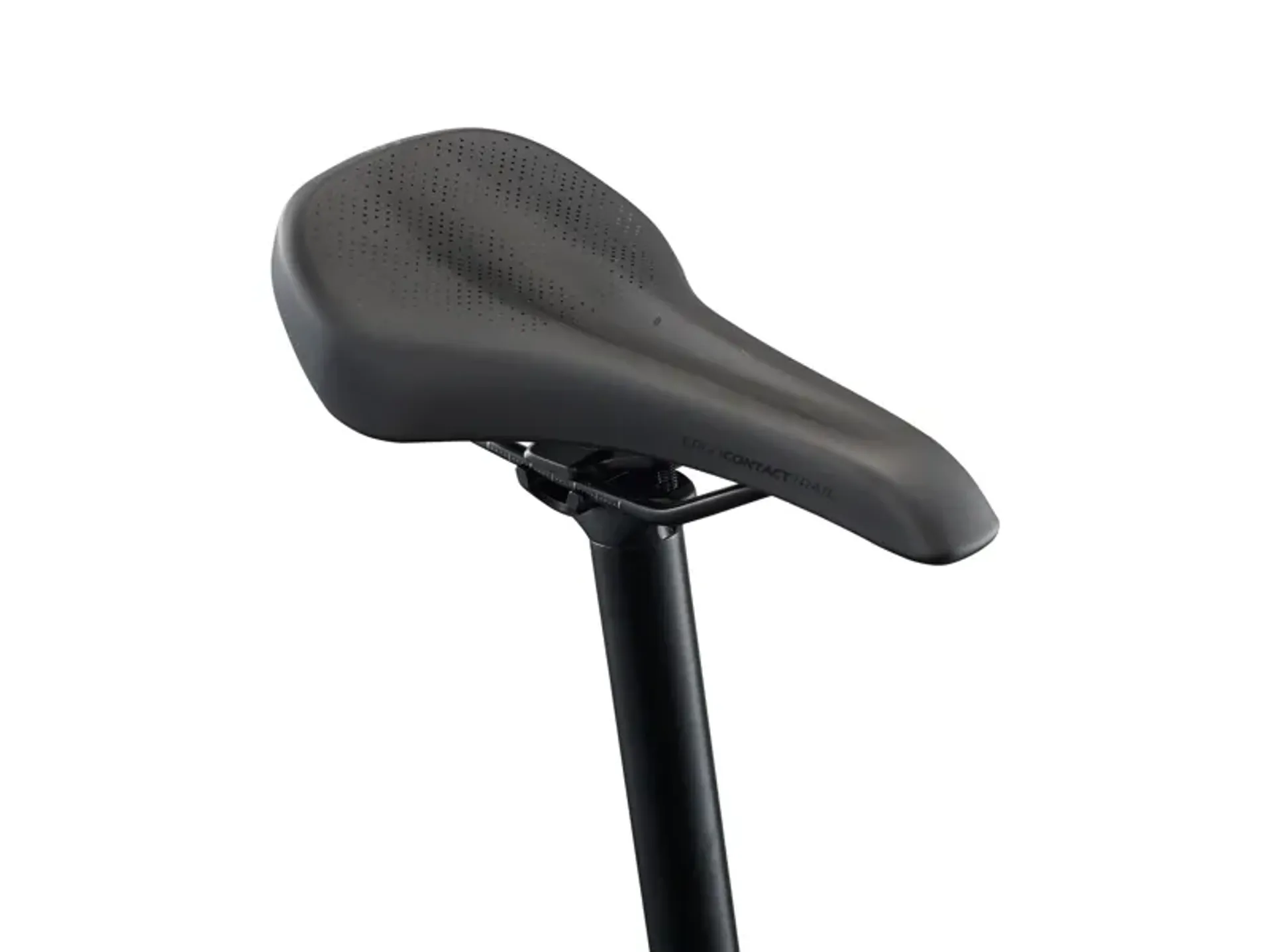

Saddle
Liv Ergo Trail ESG
-
Pedals
Anti-slip Platform
-
Shifters
Shimano Cues
-

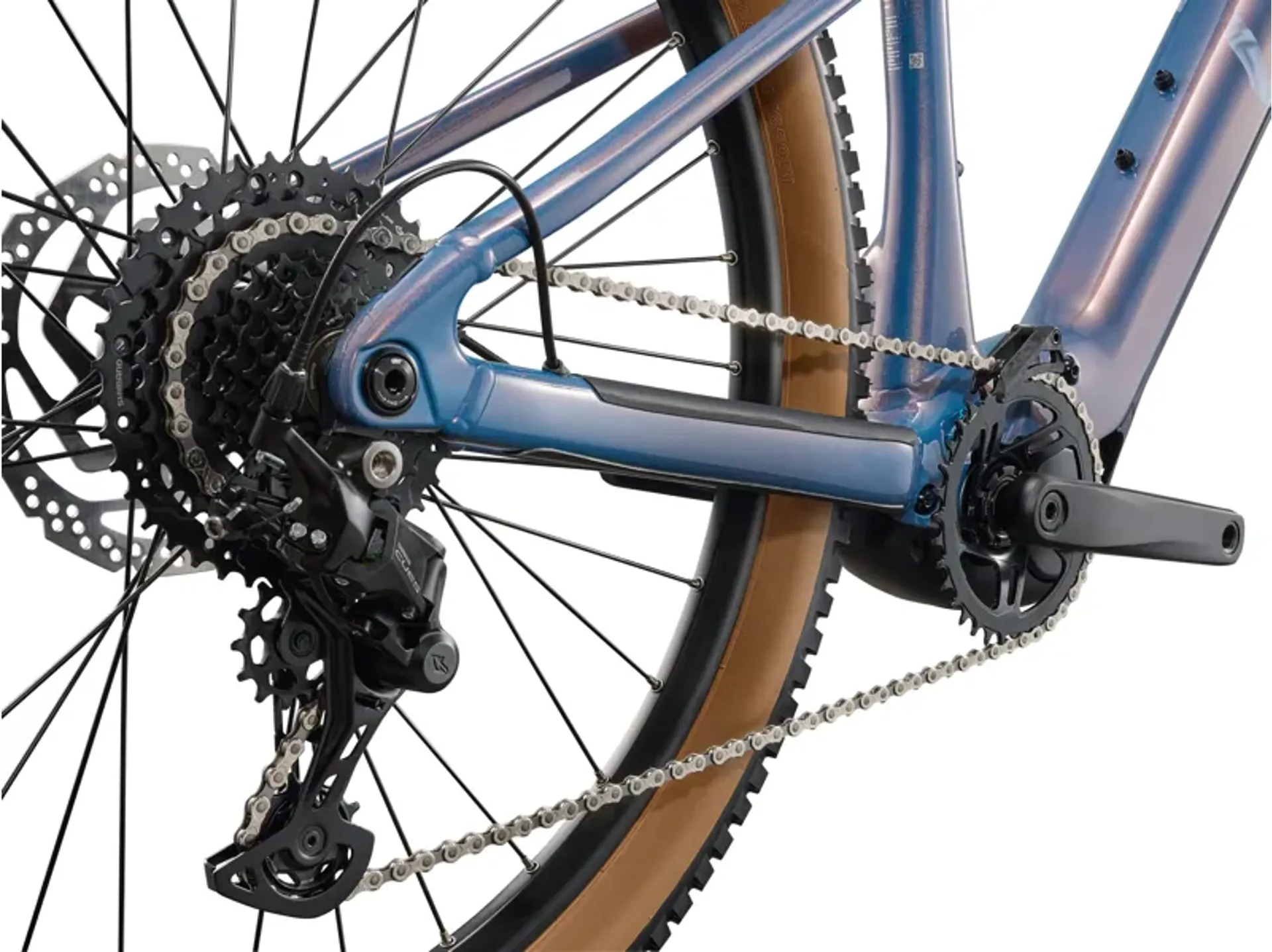

Rear Derailleur
Shimano Cues 9-speed
-
Brakes
Shimano MT200, hydraulic disc, 180mm [F/R]
-
Brake Levers
Shimano MT-200
-
Cassette
Shimano Cues, 11-41T, 9-speed
-
Chain
KMC eGlide NP/BK, e-bike optimized
-

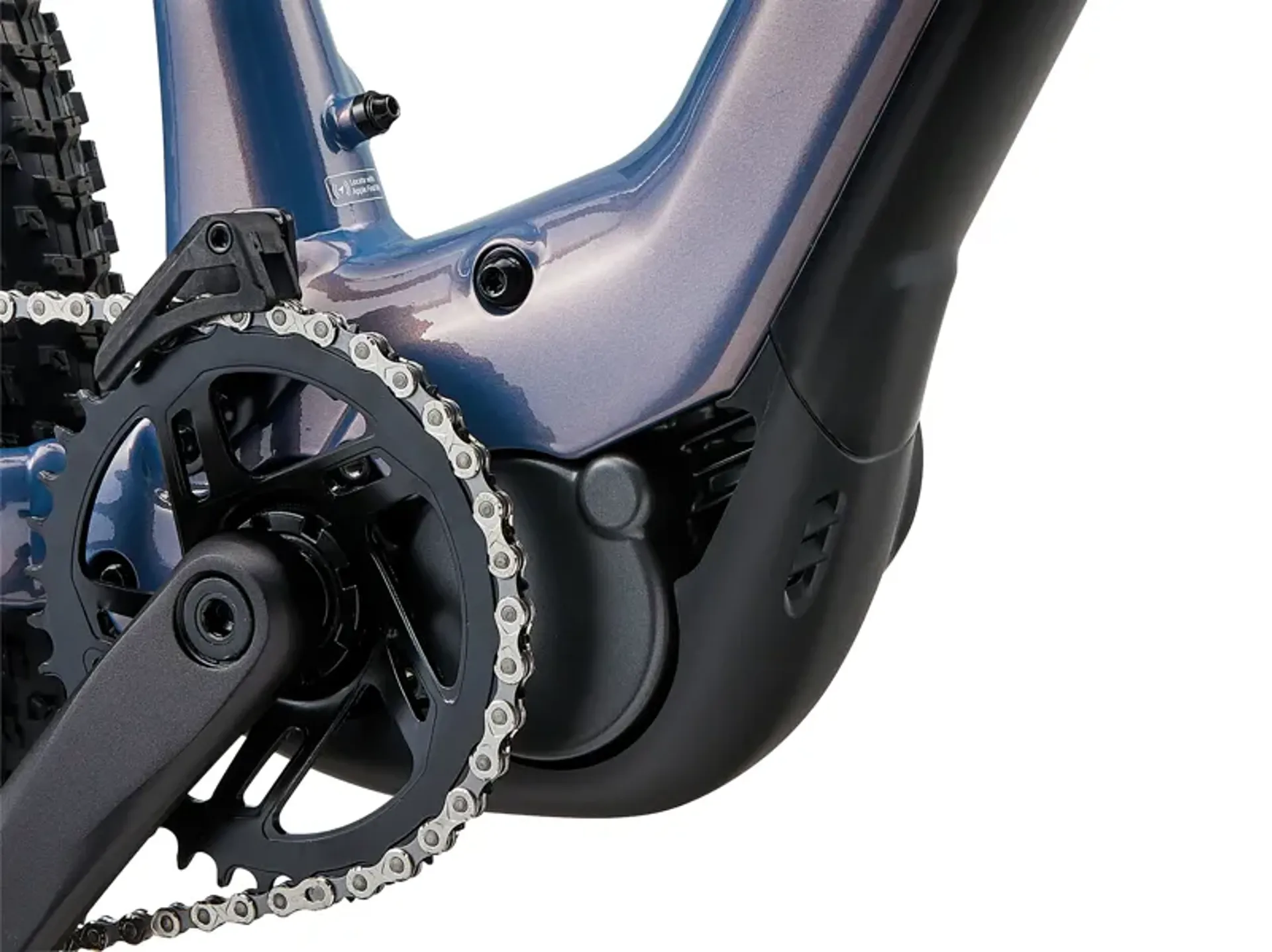

Crankset
Forged allumin direct-mount chainring steel 36T, Forged alumium crank arms, (XS-S: 160mm, M-L: 165mm)
-
Bottom Bracket
-
-
Rims
Liv, GX03V, 27.5 / 29, Alluminum (XS-S: 27.5, M-L: 29)
-
Hubs
eTracker boost alloy 6-bolt disc 15x110mm [F] 12x148mm [R]
-
Spokes
Stainless steel
-
Tyres
Maxxis Rekon Tanwall XS-S: 27.5x2.4" / M-L: 29 x 2.4" Wire Bead 60TPI
-
Lighting
-
-
Carrier
-
-
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
