Confidence Delivered

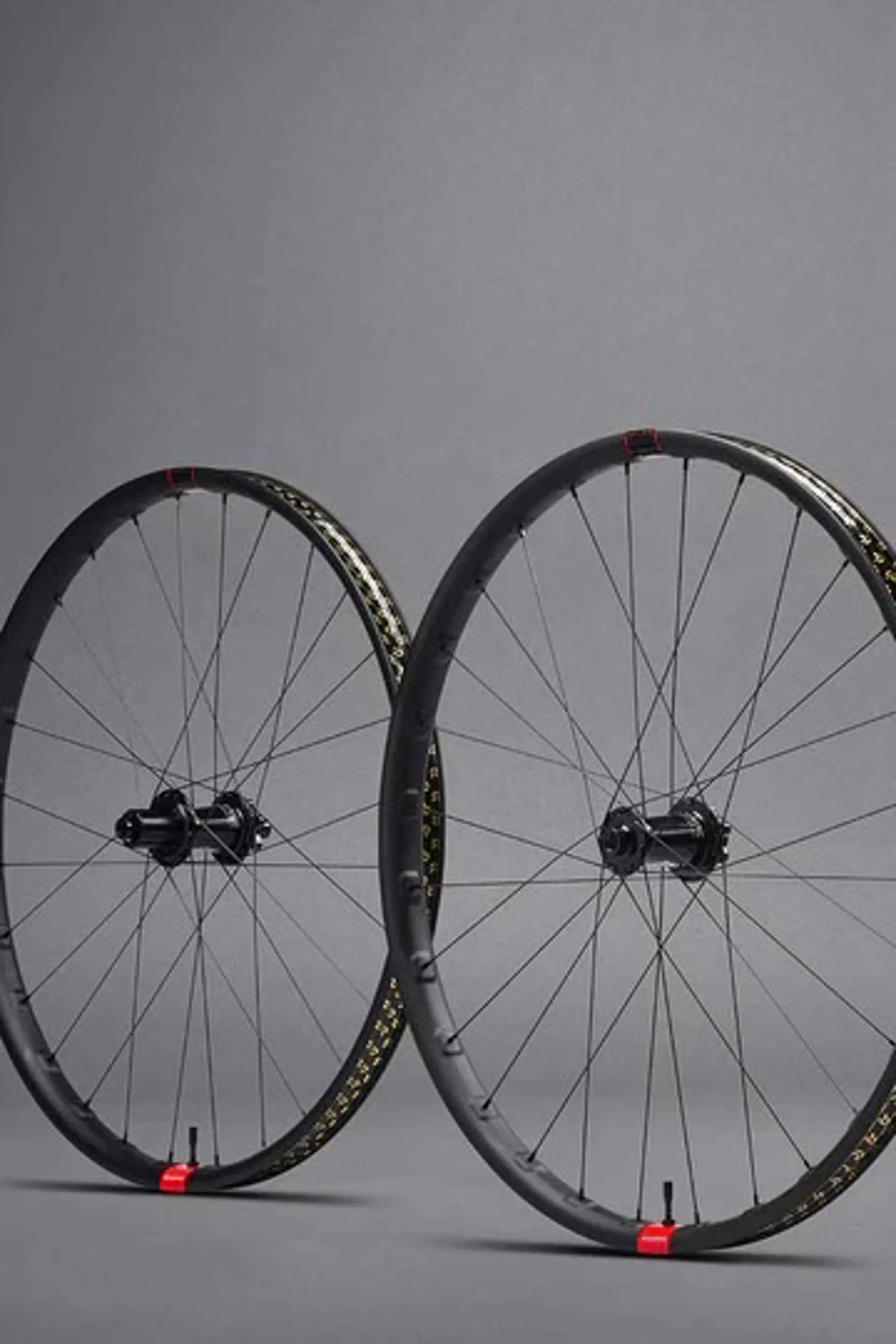

Specifically designed for use on mixed-wheel Ebikes, Reserve’s 30|HD 31|DH E-MX wheelset offers the perfect balance of stiffness, performance, durability and weight.
Combining our 30|HD front wheel with our World Championship-proven 31|DH rear wheel, the larger 29 inch front wheel provides more traction and stability for more confidence, squaring off turns and diving for the inside lines with a 27.5-inch rear that delivers quick acceleration and pop to get the entire bike lofted into the air.
Specifications:
- Designed For: Trail, all mountain and enduro E-riding
- Inner Width: 30mm 30|HD, 31mm 31|DH
- Sizes Available: 29" and MX
- Recommended Tire Dimensions: 2.4 to 2.6
- Spoke Count: 28 F / 32 R
- Wheelset Weight: 2150g in MX configuration
- Rated for e-bike use
Features:
Spoke reinforcements
Reserve uses externally reinforced spoke holes to strengthen the area where the rim sees the most force, around the spoke nipple. This provides for improved strength without adding unnecessary weight.
Redesigned rim bed makes tubeless set up easy
Redesigned rim bed eases tubeless installation, with a shaped rim bed utilising offset spoke holes that allows the tire to easily push past the bead bump to seat tubeless tires.
Asymmetrical Design (flipped front to rear)
Asymmetrical rims build stiffer, stronger and more reliable wheels by improving the bracing angles and equalising the spoke tensions between the drive and non-drive side spokes.
Tech
Hub
Industry 91/1
Wheelset Weight
2185g
Wheel Type
Mountain
Internal Width
30mm (30|HD), 31mm (31|DH)
Spoke Count
28 (30|HD), 32 (31|DH)
ERD
598mm (30|HD), 594 (31|DH)
Asymmetric Offset
4mm (30|HD), 5mm (31|DH)
Recommended Tire Width
2.4 - 2.6 in.
Driver Options
XD or MicroSpline
Brake Options
6-Bolt or Centerlock
Depth
20mm (30|HD), 21mm (31|DH)
Endcap Options
Standard
Hub Spacing
110/148
