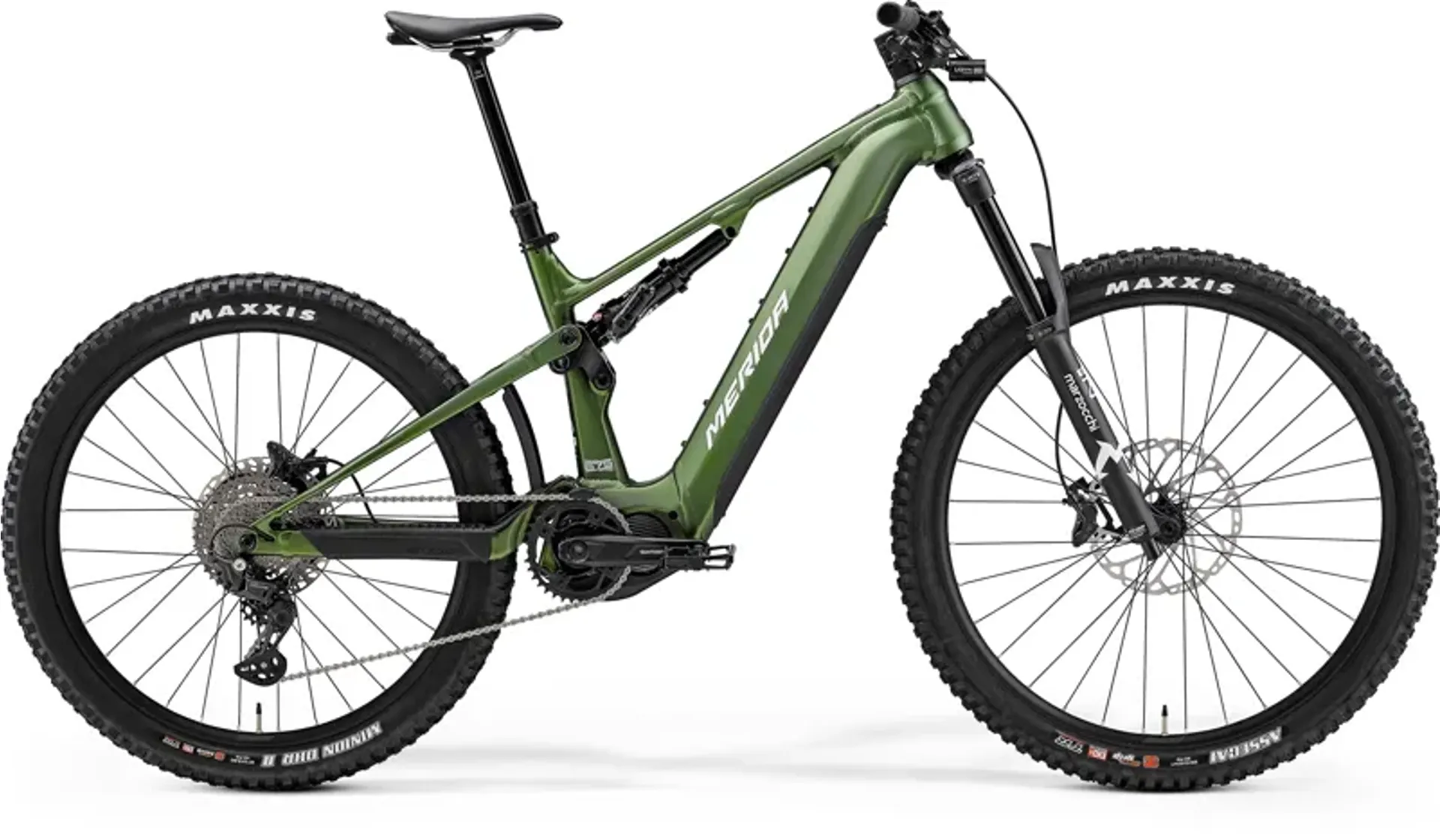

Merida eOne-Sixty 675 Electric Mountain Bike In Green/White

Season:2024

Brand:Merida

Code:P-P715

The new eone-sixty, the next descent is always about to start. Aluminium frame offersgreat value and maximum battery range, thanks to a powerful Shimano Ep801 drive unit paired with a removable 750 wh battery.

A 360 wh range extender is available separately. The only reason to stop will be because you have to. Merida capable, uodated geometry has been influenced by the success of the original eone-sixty and the award winning one-sixty; its handling will help conquer the toughest of climbs and the steepest descents. Merida proven fast kinematic suspension will take care of anything the trail throws at it. Merida low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Merida flip chip design enables you to run with mixed size 29 front and 27.5 rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails.
Technical Information
  • Frame
    Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29 x 2.6
  • Rear Shock
    Marzocchi Bomber Air; platform
  • Fork
    Marzocchi Z1 eMTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29 x 2.6
  • Headset
    Acros ICR Merida external neck w/ Blocklock
  • Stem
    Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
  • Handlebar
    Merida Expert eTR; 780mm wide; 20mm rise
  • Grip
    Merida Expert EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano Deore
  • Brake Calipers
    Front: Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor Rear: Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT-EM910 203mm rotor
  • Tyres
    Front: Maxxis Assegai; 29 x 2.5; Kevlar bead; folding; TR EXO+ 3C MaxxGrip Rear: Maxxis DHR II; 27.5 x 2.6; Kevlar bead, folding; 3C EXO+ TR
  • Wheel Size
    29 / 27.5
  • Wheels
    Rims: Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29; rear 27.5 Spokes: Black stainless Front Hub: Shimano TC500-B; 110 x 15mm; 32 spokes; Centerlock Rear Hub: Shimano TC600-HM-B; 148 x 12mm; 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key
  • Speeds
    10
  • Front Derailleur
  • Rear Derailleur
    Shimano XT RDM5130 LinkGlide 10 speed
  • Shift Levers
    Shimano XT M5130 and Shimano SL -MT500-IL dropper lever
  • Chain
    Shimano LG500
  • Cassette
    Shimano LG400; 11-43 teeth; 10 speed
  • Chainset
    FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide
  • Bottom Bracket
    Part of Shimano Steps motor
  • Pedals
    VP Components - VPE-527
  • Saddle
    Merida Expert CC with V-mount
  • Seat Post
    Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm - S: 150mm - M/L/XL: 200mm seat post travel
  • Motor
    Simplo Trend Power Internal Battery Gen 2; 750Wh, Shimano Steps EP801; 85Nm
  • Battery Capacity
    750Wh
  • eBike Display
    Shimano SC-EM800
