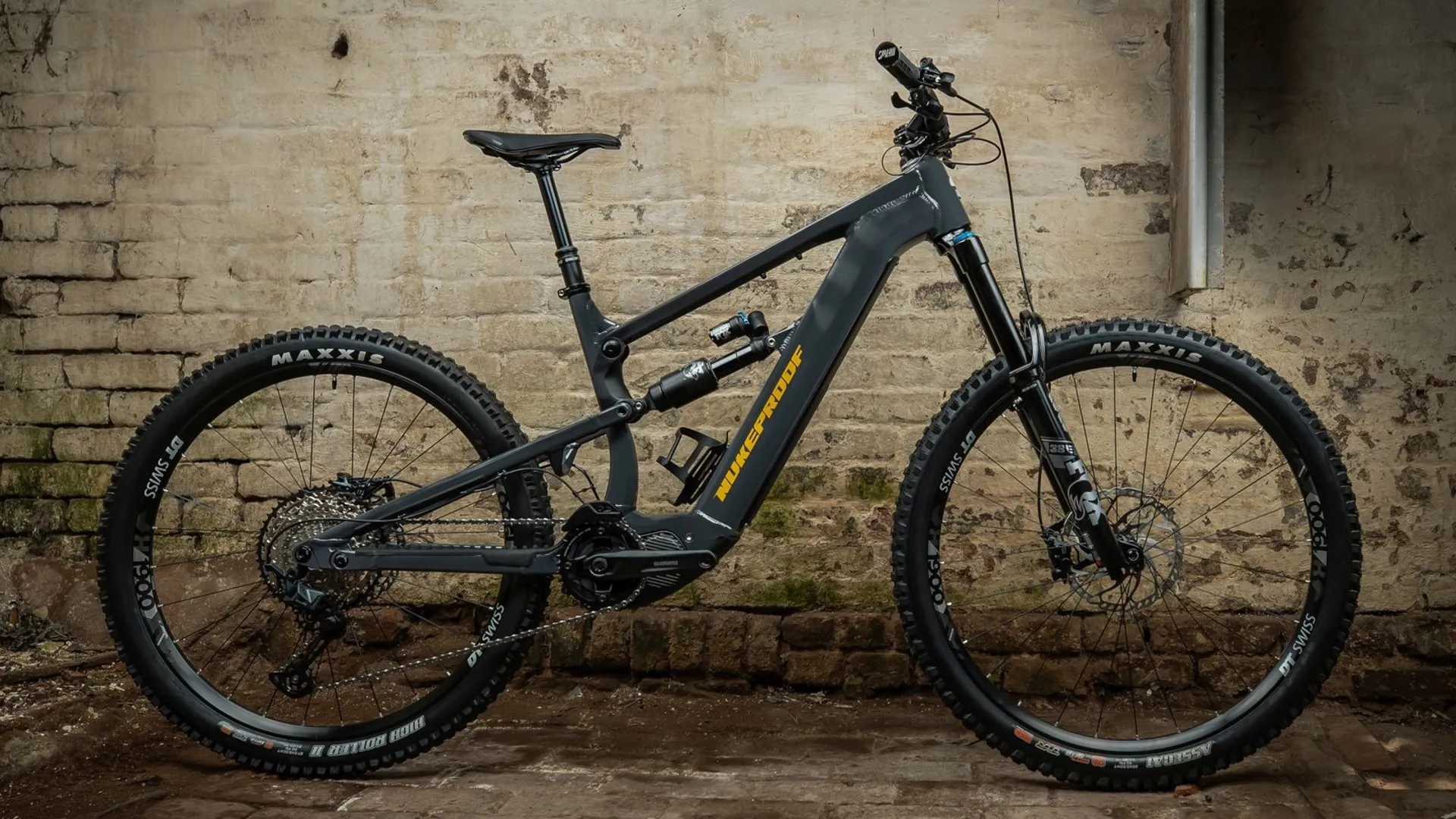

FRAME | Nukeproof Megawatt 297 Alloy, 170mm Travel, custom triple butted hydro-formed tube set, internal Battery, Internal cable routing, Enduro Bearings, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection, Shimano STEPS compatible. | Nukeproof Megawatt 297 Alloy, 170mm Travel, custom triple butted hydro-formed tube set, internal Battery, Internal cable routing, Enduro Bearings, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection, Shimano STEPS compatible. | Nukeproof Megawatt 297 Alloy, 170mm Travel, custom triple butted hydro-formed tube set, internal Battery, Internal cable routing, Enduro Bearings, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection, Shimano STEPS compatible. |
---|
FORK | RockShox Zeb Select, 29”, Charger RC damper, 170mm, 44mm Offset, BOOST, Debonair, 1.8 Tapered Steerer, Gloss Black | Fox 38 Float, 29”, Performance Elite Series, Grip 2 Damper, 170mm, 44mm Offset, BOOST, 1.5T Steerer, 68mm Crown, Black (SHORT ID: D6G2) | Fox 38 Float, 29”, Factory Series, Kashima, Grip 2 Damper, 170mm, 44mm Offset, BOOST, 1.5T Steerer, 68mm Crown, Black (SHORT ID: D6G3) |
---|
SHOCK | RockShox Super Deluxe Select R, Custom LIN L1 HOTDOG tune, 230x62.5mm, Bearing End, 2 bottomless tokens fitted. | Fox Float X2, Performance Series, EVOL, 2 Position lever, Custom CL, RM, Rezi CM tune, 230x62.5mm, Bearing End, 2x 0.3 spacer fitted. | Fox Float X2, Factory Series, Kashima, EVOL, 2 Position lever, Custom CL, RM, Rezi CM tune, 230x62.5mm, Bearing End, 2x 0.3 spacer fitted. |
---|
WHEELSET | Front Wheel: Sun-Ringle Duroc SD37 Comp 29"", 15x110mm // Rear Wheel: Sun-Ringle Duroc SD37 Comp 27.5"", Shimano Microspline Driver, 148x12mm | Front Wheel: DT Swiss H1900 SPLINE,29"", 6 Bolt, 110x15mm // Rear Wheel: DT Swiss H1900 SPLINE, 27.5"", 6 Bolt, Shimano Microspline Driver, 148x12mm | Front wheel: DT Swiss H1700 SPLINE 30,27.5"", 6 Bolt, 110x15mm // Rear wheel: DT Swiss H1700 SPLINE 30, 27.5"", 6 Bolt, Shimano Microspline Driver, 148x12mm |
---|
DRIVE SYSTEM | Shimano STEPS EP8, 250W, 85Nm | Shimano STEPS EP8, 250W, 85Nm | Shimano STEPS EP8, 250W, 85Nm |
---|
DISPLAY | Shimano EM800 with Shimano EM800-L Assist Switch | Shimano EM800 with Shimano EM800-L Assist Switch | Shimano EM800 with Shimano EM800-L Assist Switch |
---|
BATTERY | Shimano E8035, 504Wh | Shimano E8036, 630Wh | Shimano E8036, 630Wh |
---|
SHIFTER | Shimano Deore M6100-IR, 12-speed Rapidfire Plus, I-Spec EV | Shimano SLX M7100-IR, 12-speed Rapidfire Plus, I-Spec EV | Shimano XT M8100-R, 12-speed Rapidfire Plus, I-Spec EV |
---|
REAR DERAILEUR | Shimano Deore M6100, SGS 12-Speed, Shadow Plus | Shimano SLX M7100, SGS 12-Speed, Shadow Plus | Shimano XT M8100, SGS 12-Speed, Shadow Plus |
---|
CHAIN | Shimano Deore M6100 12-Speed | Shimano SLX M7100 HG 12-speed Inc Quicklink | Shimano XT M8100 HG 12-speed Inc Quicklink |
---|
CASSETTE | Shimano Deore M6100 12-Speed (HYPERGLIDE+), 10-51T | Shimano SLX M7100-12, 12-Speed (HYPERGLIDE+), 10-51T | Shimano XT M8100-12, 12-Speed (HYPERGLIDE+), 10-51T |
---|
CHAIN GUIDE | Shimano SM-CDE80 drive unit mount | Shimano SM-CDE80 drive unit mount | Shimano SM-CDE80 drive unit mount |
---|
BRAKES | Shimano Deore M6120 4 pot brake, Resin Pads | Shimano SLX M7120, 4 Pot Brake, Metallic Pads with Fins | Shimano XT M8120, 4 Pot Brake, Metallic Pads with Fins |
---|
ROTORS | Shimano SM-RT66, 203mm | Shimano SM-RT66 203mm | Shimano SM-RT76, 203mm |
---|
TYRES | Front: Maxxis Assegai 29”x2.5 WT 3C MaxxGrip/DD/TR, Rear: Maxxis High Roller II 27.5”x2.5 WT 3C MaxxTerra/DD/TR | Front: Maxxis Assegai 29”x2.5 WT 3C MaxxGrip/DD/TR, Rear: Maxxis High Roller II 27.5”x2.5 WT 3C MaxxTerra/DD/TR | Front: Maxxis Assegai 29”x2.5 WT 3C MaxxGrip/DD/TR, Rear: Maxxis High Roller II 27.5”x2.5 WT 3C MaxxTerra/DD/TR |
---|
HANDLEBARS | Nukeproof Neutron V2 25mm Rise, Width - S780mm, M780mm, L800mm, XL800mm, XXL800mm) | Nukeproof Horizon V2 25mm Rise, Width - S780mm, M780mm, L800mm, XL800mm, XXL800mm) | Nukeproof Horizon V2 25mm Rise, Width - S780mm, M780mm, L800mm, XL800mm, XXL800mm) |
---|
STEM | Nukeproof Neutron AM, 45mm, black | Nukeproof Horizon, 50mm, Black | Nukeproof Horizon, 50mm, Black |
---|
SADDLE | Nukeproof Horizon Enduro, Black | Nukeproof Horizon Enduro, Black | Nukeproof Horizon Enduro, Black |
---|
SEATPOST | Brand X Ascend internal, 31.6mm, S:125mm drop; M:150mm drop; L/XL/XXL: 170mm Drop | Brand X Ascend internal w Shimano SL-MT500-IL Remote lever, S:125mm drop; M:150mm drop; L/XL/XXL:170mm drop | Bikeyoke Divine Stealth w Shimano SL-MT500-IL Remote lever, S:125mm drop; M/L:160mm drop; XL/XXL:185mm drop |
---|
HEADSET | Acros AZX-589R1, sealed bearings, ZS56/28.6 – ZS66/38 | Acros AZX-589R1, sealed bearings, ZS56/28.6 – ZS66/39 | Acros AZX-589R1, sealed bearings, ZS56/28.6 – ZS66/40 |
---|
GRIPS | Nukeproof Sam Hill Signature | Nukeproof Sam Hill Signature | Nukeproof Sam Hill Signature |
---|
BATTERY CHARGER | Shimano E6002 | Shimano E6002 | Shimano E6002 |
---|
WEIGHT: (SIZE MEDIUM) | 23.4Kgs/51.6lbs (Tubeless w 504Wh Battery) | 24.3Kgs/53.5lbs (Tubeless w 630Wh Battery) | 23.9Kgs/52.6lbs (Tubeless w 630Wh Battery) |
---|
