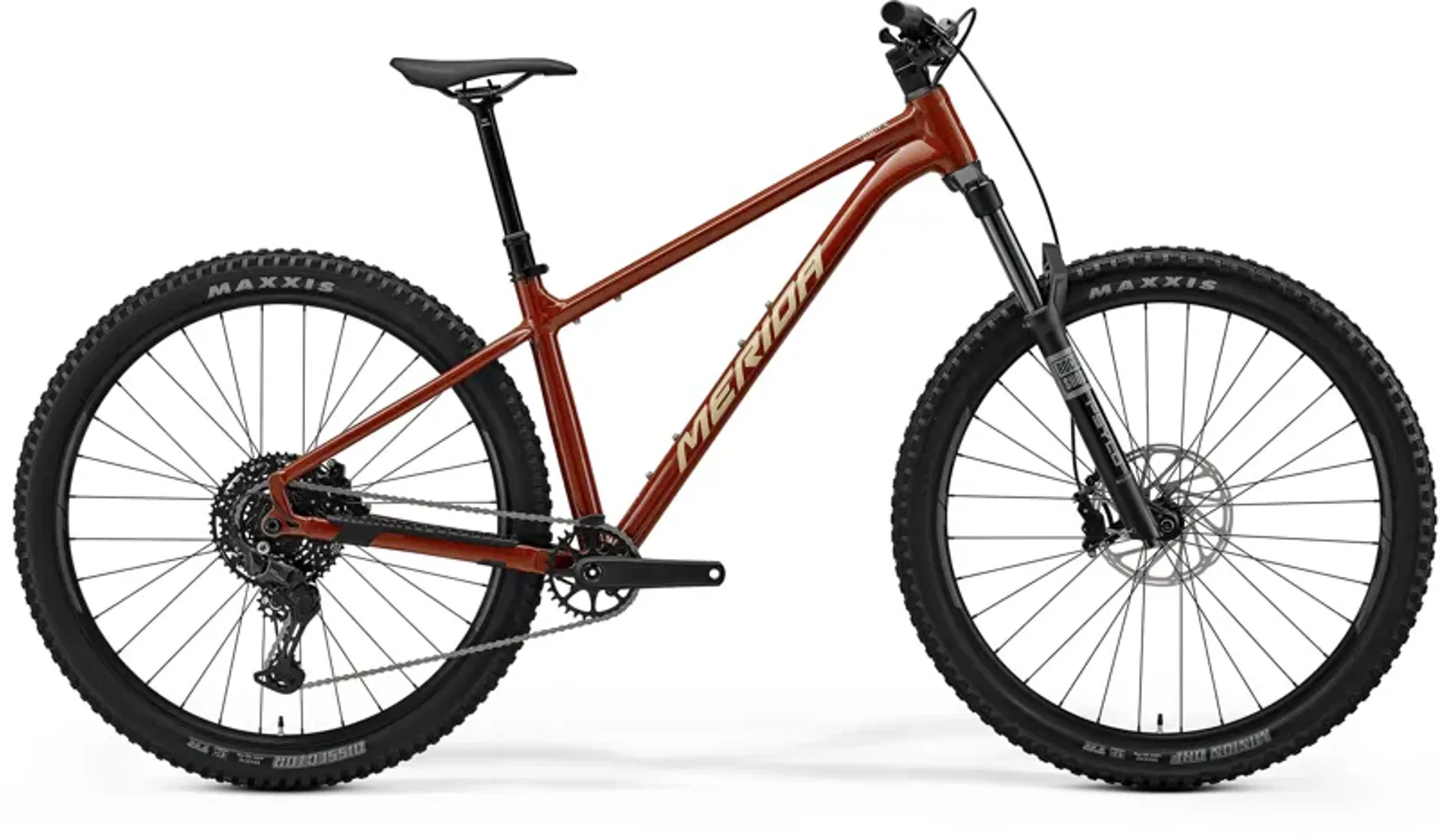

Merida Big Trail 500 MTB In Mokka Brown

Season:2026

Brand:Merida

Code:P-R107

The original Big Trail concept was the result of a few UK dealers discussing the ideal UK trail bike with the Merida R&D chief.

Now in its second iteration, Big Trail is a fun-packed and hugely capable trail bike. Its progressive geometry combines a steep 76.5° seat angle with a slack 64.0° head angle, giving great climbing characteristics and plenty of stability when the terrain gets steep or rough.

Sizing follows the Agilometer principle, which means most sizes work for most body sizes so that riding style can be factored in. If you want to go fast, take the longer size; for agility, take a shorter size.

Features:

  • 140mm air fork
  • 29 wheels
  • 1 x transmission
  • Dropper post
Technical Information
  • Frame
    TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29 x 2.5
  • Fork
    RockShox Psylo Silver RC; Air; 140 mm travel; platform
  • Headset
    Acros ICR Merida External neck; Upper and lower IPS sealing
  • Stem
    Merida Expert eTRII; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
  • Handlebar
    Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise
  • Grip
    Merida Comp TR
  • Brake Type
    Hydraulic Disc
  • Brake Calipers
    Front: SRAM DB4; 4 piston with SRAM CenterLine; 200mm Rear: SRAM DB4; 4 piston with SRAM CenterLine; 180mm
  • Tyres
    Front: Maxxis Minion DHF; 29x2.5; kevlar bead; TR EXO Dual Rear: Maxxis Dissector; 29x2.4; kevlar bead; TR EXO Dual
  • Wheel Size
    29
  • Wheels
    Rims: Merida Comp TR; 29mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included) Spokes: Double Butted Black stainless w/black nipples Front Hub: Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock Rear Hub: Shimano TC500-HM-B; 148x12mm; 32 Spoke; Centerlock
  • Speeds
    10
  • Rear Derailleur
    Shimano CUES U6000; GS
  • Shift Levers
    Front: Shimano SL-MT500-L, Rear: Shimano CUES U6000
  • Chain
    KMC xGlide
  • Cassette
    Shimano LG300; 11-48 teeth; 10 speed
  • Chainset
    Merida Expert TR II; 32 tooth chainset; Crank length: (XShort-Long) - 165mm, Xlong - 170mm
  • Bottom Bracket
    Attached
  • Pedals
    Not included
  • Saddle
    Merida Comp SL; 25% recycled material; V-mount
  • Seat Post
    Merida Expert TR II; 34.9mm diameter; in-line; XShort - 150mm, (Short-Mid) - 170mm, Long - 200mm, XLong - 230mm seat post travel
